The development over time of mortar and render
In the text below we provide an explanation for those who wonder why enormously long walls and thick renders from the past are still intact while modern masonry and renders crack.
Nowadays mortars and renders are composed in such a manner that they react to thermal variations and this leads to deformations that we consider ourselves capable of dealing with by means of bars and dilatation joints.
The photograph above shows how a bricklayer’s workplace looked in 1926. The machines and safety measures we now take for granted were totally absent. All work was performed by hand. The brickwork is constructed with block-jointed, full-sized red brick from Bältarbo, with beaded jointing and beautiful vaulting over the apertures. The brick format is approximately 295 x 140 x 70 m. The chimneys have been completed and roofing is under way prior to the completion during the autumn of the facade joinery and interior rendering. A potato patch is in flower in the foreground.
On the left can be seen a horse and cart with the carter in his seat after delivering coal. Some workmen are resting on the grass in front of the smaller shed (the limeshed). Several of them are wearing typical bricklayers’ clothing. To the right of the limeshed, a couple of wooden quicklime barrels which have been emptied of their contents of burnt limestone,CaO, are lying in the gravel. The lime shed was where the quicklime was slaked with water and whisked together with aggregate to make mortar and render which were strengthened by the addition of cement and gravel to make concrete for the foundations and beams. The ground between the sheds and the bottom of the larger shed are white from lime and cement spills.
Masonry construction is dependent upon the perpetual lime cycle:
CaCO3 –> CaO + CO2
Calcium carbonate (CaCO3) decomposes to make calcium oxide (CaO) and carbon dioxide (CO2) when heated. Carbon dioxide (CO2) is released to the air and calcium oxide (CaO), often known as quicklime, is left behind. The process is usually called ”calcination”.
CaO + H2O Ca(OH2)
When water (H2O) is added to calcium oxide (CaO), heat is generated and calcium hydroxide (Ca(OH)2 ), also known as slaked lime, is produced.
Ca(OH)2 + CO2 CaCO3 + H2O
Calcium hydroxide (Ca(OH)2) used in e.g. mortar reabsorbs carbondioxide from the air and is converted back into calcium carbonate (CaCO3). Water molecules are released in the process and evaporate.
Throughout the centuries, lime-stone has been roasted and slaked under primitive conditions. The burned lime was then whisked together with whatever ballast was available to form mortar and render which often had the right properties.
Many of our older buildings still show surprising evidence of how well that worked.
By the right properties we mean that the mortar, because of its elasticity, is able to absorb the forces created by the temperature-driven changes in volume of the building stones so that these forces do not spread and increase laterally.
In time, the production of binder lime evolved to become a quality controlled industry and this entailed a number of problems for masonry, as described below.
The twentieth century was typified additionally in masonry by the increasingly common use of cement even in the maintenance of historic buldings.
Cement was later blamed for causing a multitude of problems affecting masonry, although these can usually be blamed on the change to the use of leaner mortars, richer in sand, regardless of the binder material.
The lime-rich 1:1 mortars changed eventually to sand-rich 1:3 mortars as shown below.
In the following text we describe the probable development of mortar and render through the ages. Our text is the result of more than fifty years’ experience of work, practical research and the testing of mortar and lime-wash in Europe from all epochs.
It may all have started thousands of years ago by someone or a group of people discovering that limestone became lighter after it had been heated strongly and for a long time and that it hissed when water was poured on it, heat being released and the stone almost dissolving into a paste-like material which later shrank and slowly regained a hard structure.
Experiences of the cycle described above led in time to the burning and slaking of limestone to form a binder in mortar so that more primitive dwellings could gradually be abandoned. Mortar and render with lime or cement binders became one of the most valuable building materials ever created.
Burning and slaking in the past
At first, the manufacture of lime occurred very simply at the building site by layering limestone alternately with firewood in a hole, covering it over and firing it.
When the stone had cooled down, it was slaked with water, aggregate was added and it was all whisked together to form mortar.
Mortars became lime-rich and thus so elastic that enormously long walls could be built and stand for centuries without the necessity for the creation of special stress-absorbing dilation joints.
As regards quality and function, the earlier lime-rich mortars and renders excel by comparison with most of those produced after the 1890s. In the nordic climate they require good protection against damp and need to be of sufficient thickness for there to be space for additional damp without the pores becoming filled with water when frost strikes.
Lime-rich mortar and render without contraction cracks showing roasted soft lumps of limestone. That on the left is from the late middle ages and on the right from the 18th century. Both with equal parts by weight of lime and whichever aggregate was available.
Analysis of older intact mortars typically reveals that the proportions by weight of lime and aggregate are nearly equal. One part lime with a low content of binder was whisked with an equal part of aggregate. This did not lead to the problems associated with shrinkage that always occur when the proportion of binder exceeds 13% by weight.
Cracks arise on shrinking and render loosens from the substrate even if the crack is refilled.
The lime-rich mortar we today call 1:1 is so elastic that it absorbs movements even from the temperature-driven volume changes of large stone blocks in such a way that the forces do not increase and spread sideways.
Traditional mortar – Mortar 1:1
This mortar is typified by its ease of working and is a microscopic porous copy of the wall itself: the individual aggregate particles and building stones are embedded in lime and pores.
The aggregate provides strength to the mortar and significantly reduces the amount of lime needed.
Modern mortar – Mortar 1:3

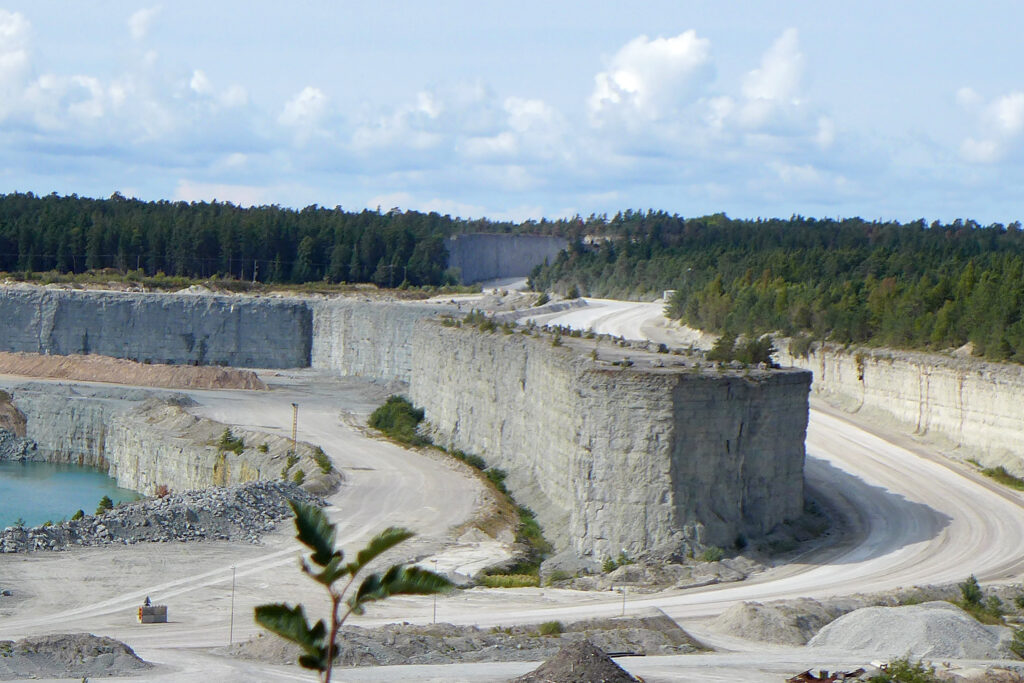

Over time and with the increase in construction, production developed into an industry where nearly all the limestone that is burned is converted into binder, Ca(OH)2, which can be used in mortar up to a maximum of 13 per cent by weight.
Throughout almost all the twentieth century, 1:3 mortar bound with lime and cement was used even for repairs and maintenance of historic buildings. Numerous problems have been observed with these mortars.
The lean mortars lack elasticity, thus requiring the construction of dilation joints. This is necessary even in new brick walls where the horizontal joints form a pressure bar forcing the corners away from the wall.
Variations in temperature between day and night and between the seasons create changes in volume in the wall.
The black arrows indicate the dilation joints which absorb the volume changes.
An example of the problems
The wall in the photograph below has no protective roof and collapsed at the beginning of the 21st century after having been repointed during the 1950s – 1960s with a lean lime/cement mortar. The mortar prevented the damp which penetrated through the unprotected crown of the wall from leaving the inner part of the wall. Over time, sideways forces appear and increase in the outer part of the wall to such an extent that bulging portions of the wall are pushed away.
Conclusions reached after many years of laboratory and full scale testing
Mortars and renders used in historic buildings can present a variety of different problems which are often blamed on the presence of cement.
Our analyses and experiments which started in the 1970s show that the real cause in the nordic climate is the plentiful admixture of silica sand.
When aggregate grains lie glued together in horizontal joints they function together volume-wise like concrete.
Our interest in the quality problems of mortar was aroused during the 1970s during our co-operation with, amongst others, Ivar Öhrnelius from Stråbruken AB concerning how to prepare a new mortar for repair work at Skokloster and Strömsholm.
After experimentation we gradually came to two conclusions:
– The proportion of lime binder should not exceed 13 per cent by weight.
– The concentration of limestone in the lime mortar is achieved by reducing the silica sand content and replacing it with ground limestone as a substitute for the roasted lime stone of older mortars.
By these means, we have been able to reconstruct a lime mortar with the correct properties required for traditional masonry.
We and our clients are happy to see that the result of our analyses and tests has led to ever more use of our lime-rich mortars and renders for the care and maintenance of nordic historic environments.
A recipe for mortar and render for historic buildings:
– 10-12 per cent by weight of binder where the type is chosen with regard to factors such as the risk of frost and damp.
– 50-70 per cent by weight of silica sand.
– 25-38 per cent by weight of limestone filler consisting of ground limestone in order to ensure elasticity.
Further information concerning the use of lime mortar and limewash in the care of historic buildings can be obtained from our brochure ”Lime mortar 8”.
Our theory also applies to the recycling of render
We are now focussing on updating the brochure ”Lime mortar 8” to version 9 and are evaluating a large number of projects where a new type of lime mortar has been developed, specifically for the upkeep of masonry suffering from salt weathering (sacrificial render).
Our brochures about lime mortar and lime render, together with the methods described for upkeep of historical buildings, are available for use in projects in which we are involved.
What about the costs?
”Long term management demands that the price of cheap but faulty
should not be compared with that of more expensive and correct.”
